Product
Details

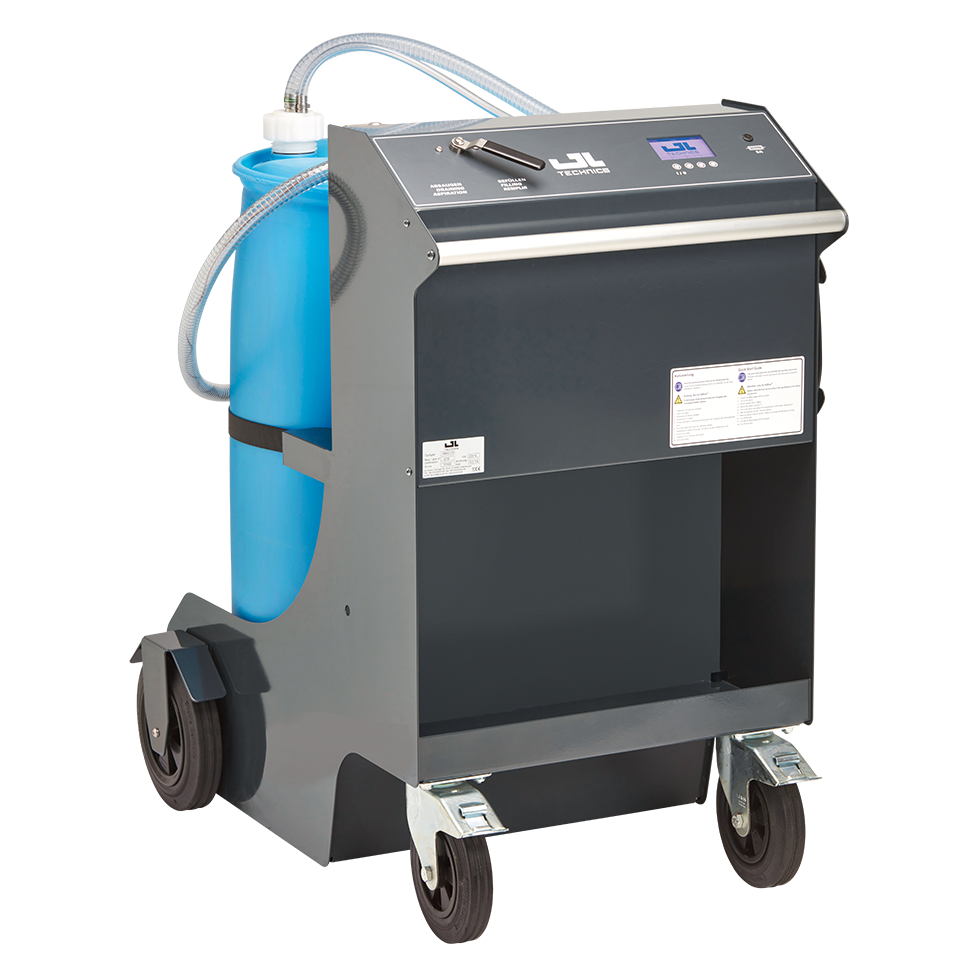

210L PROFI LINE PLUS filling device for AdBlue with roller conveyo Article no. 803.210.000
The filling device for AdBlue® 210 LITER PROFI LINE PLUS is the optimal partner for high AdBlue® throughput. The top models of the PROFI LINE PLUS series are equipped with the proven GL TECHNICS filling connection, with which the filling hose of the units can be firmly connected to the vehicle tank. Thanks to sophisticated sensor technology, the unit can be operated in automatic mode. This enables the tank to be filled in a minimum of time. As soon as the filling process is completed, the downstream suction system guarantees a maximum permissible tank level. Thus the PROFI LINE PLUS units achieve a fast and above all drip-free filling of the vehicle tank.
Furthermore, the advanced microprocessor control system makes it possible to select pre-set filling quantities. The internal memory is used for digital order documentation and can be read out via USB interface.
OTHER FEATURES:
- USB interface
- Sensor-controlled automatic filling system
- Manual flow rate selectable in two stages 3.8 or 7.6 litres/min
- Patented, firmly screwed filling connection
- Closed hose system without nozzle
- Absolutely drip-free uncoupling from the vehicle
- Ratchet disk as over twist protection of the refueling nozzle
- Automatic limit switch-off at correct filling level
- Digital counter
- Overfilling impossible
The filling device for AdBlue® 210 LITER PROFI LINE PLUS recieves containers with a capacity of up to 210 liters and also possesses all functions of the smaller 60 LITER PROFI LINE PLUS device.
DELIVERY INCLUDES:
- Movable filling device for 210 liter containers
- Restraint belt and extraction tube for 210 liter containers
- Operating instructions
Container not included in delivery
ACCESSORIES (OPTIONALLY AVAILABLE):
- Roller conveyor for simple placement of 210 liter AdBlue® containers.
Article-No. 803.200.021 - Extraction fittings for filling the appliance from IBC containers.
Article-No. 803.310.000 - Battery.
Article-No. 803.060.020
Technical data
- Article no.
- 803.210.000
- Dimensions
- 980 x 780 x 1,130
- Weight
- 72 kg
- Container size
- 210 l
- Transfer capacity
- 7.6 l/min bzw. 3.8 l/min
- Mains voltage
- 230 V
- Automatic shutdown
- Yes
- EAN no.
- 4251705200448
